Introduction
Fang Ji® FJ-UVSS Series Under-Vehicle Scanning & Imaging System is a linear and area array industrial camera scanning and inspection system independently R&D and manufactured by Fangji Infinite Technology Co., Ltd. It is designed to detect chassis modifications and concealed prohibited items on passing vehicles, and is widely applicable to security screening scenarios at high-security locations such as prisons, customs checkpoints and border control stations.
Tailored to industry-specific requirements, the product incorporates advanced industrial design concepts, boasting a sleek and aesthetically pleasing overall appearance. Meanwhile, it features hassle-free installation, convenient mobility and easy maintenance.
----------------------------------------------------------------------------------------------
Core features
1. Supports two scanning modes: linear array and area array

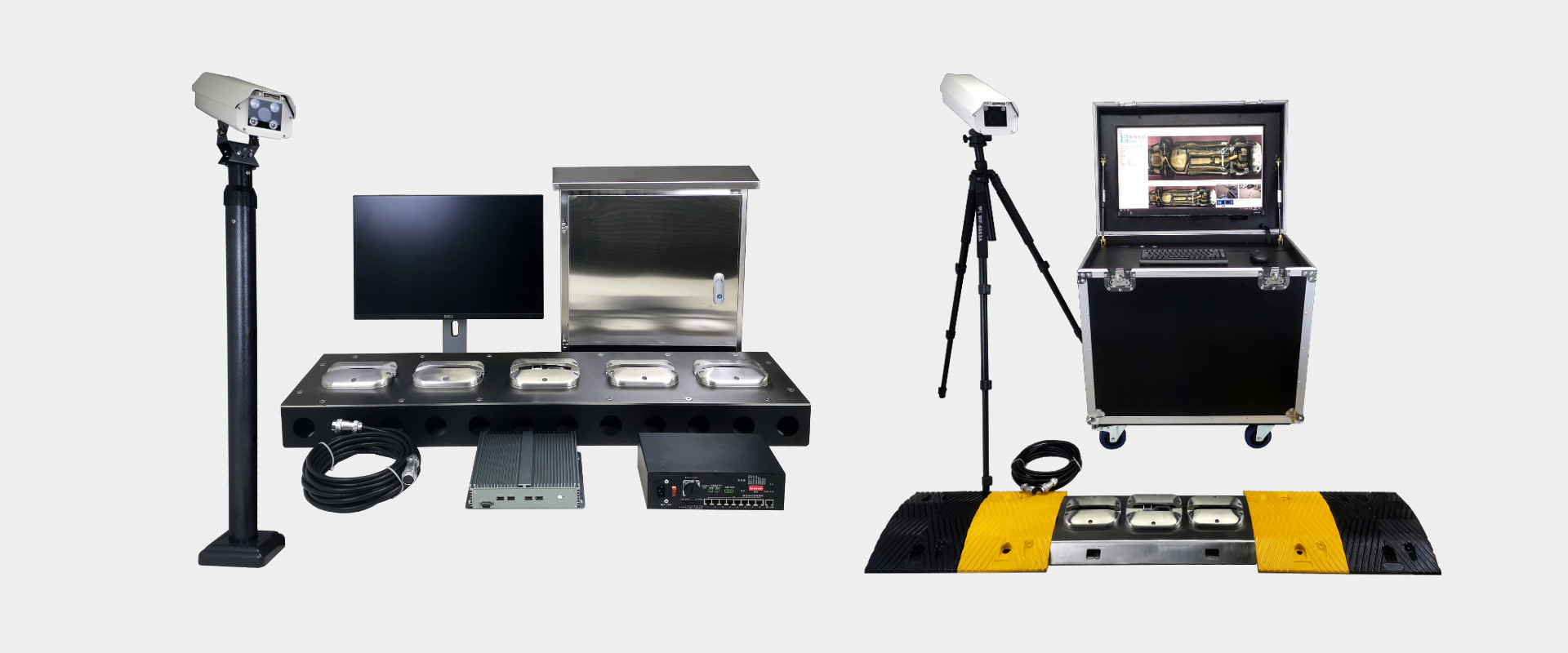

2. Offers two installation methods: portable and fixed
3. The fixed installation supports shallow burying with a depth of 5 cm, eliminating the need for a drainage well
4. The fill light and scanning camera are detachable, facilitating maintenance and replacement
5. Passed a 50-meter water immersion test and an 80-ton load impact test
6. Supports intelligent entrance-exit comparison, as well as intelligent anomaly analysis and alarm for single-channel access
7. Image resolution: ≥10000×4096; Imaging time: < 1 second
8. Speed limit
Area scanning mode: Forward 0–100 km/h; Reverse 0–25 km/h
Linear scanning mode: Forward 0–20 km/h; Reverse 0–20 km/h
9. Height limit: 50–2000 mm; Width limit: ≤4500 mm
----------------------------------------------------------------------------
